Genius MISTRAL324 24Vdc ram kit for swing gates up to 3m

Genius MISTRAL324 24Vdc ram kit for swing gates up to 3m
Click Image for Gallery

  • We’re sorry but this product is no longer available. We have listed suitable alternatives, by clicking RECOMMENDED PRODUCTS for replacement.

    Click the red Recommended Product button to go to the recommended product.

    Without opening & closing limit switches

    - Irreversible 24Vdc operator.
    - A robust internal kinematics mechanism, including a bronze gear/steel worm screw, grants high reliability.
    - More than 30 software-controlled consecutive cycles and a frequency of use of 80 day cycles.
    - Housing for battery backup (optional) which allows the gate to open in case of mains voltage failure.

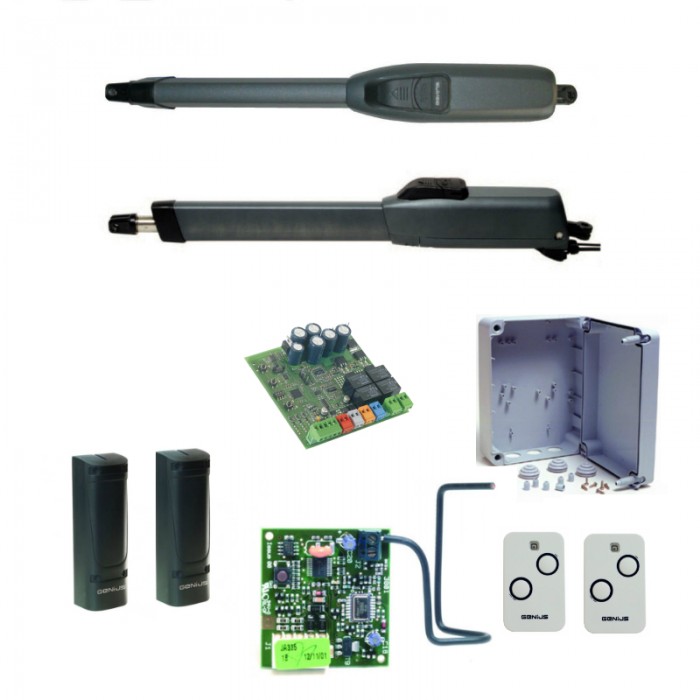

    The Kit contains:

    • 2 x MISTRAL324 Electro-mechanical operators
    • 1 x BRAIN control board (BRAIN15)
    • 1 x Box for control board
    • 1 x Single channel 868 MHz receiver
    • 2 x KILO Transmitters
    • 1 x VEGA photocell

Technical
Battery Backup Option Yes
IP Rating 54
Max Gate Leaf Length 3.0m
Max Speed 1.6cm/s
Motor Voltage 24Vdc
Work Cycle 100%

Write a review

Please login or register to review
  • Brand: Genius
  • Product Code: GMIS324KIT D/S
  • Dispatched: 1-2 Working Days
